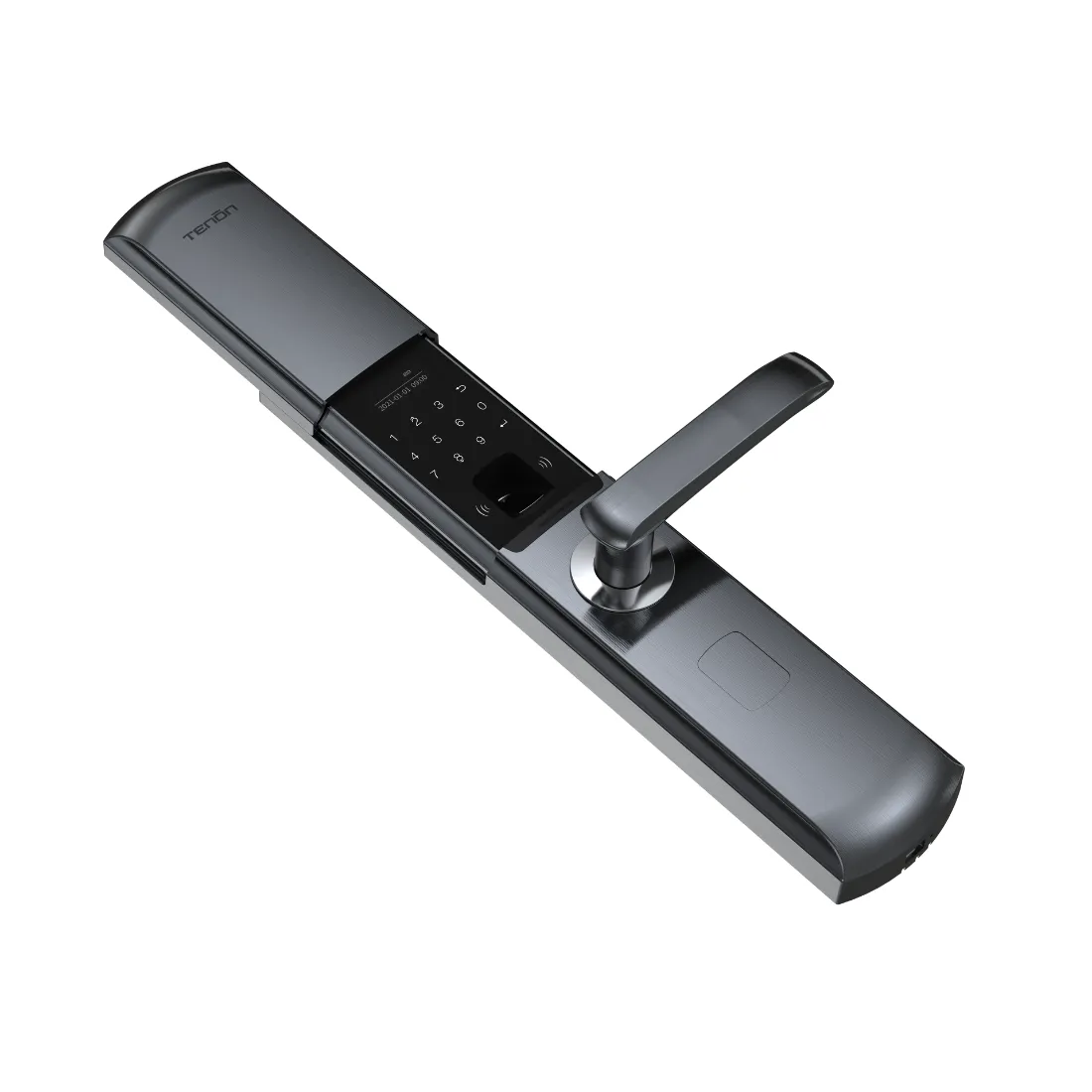

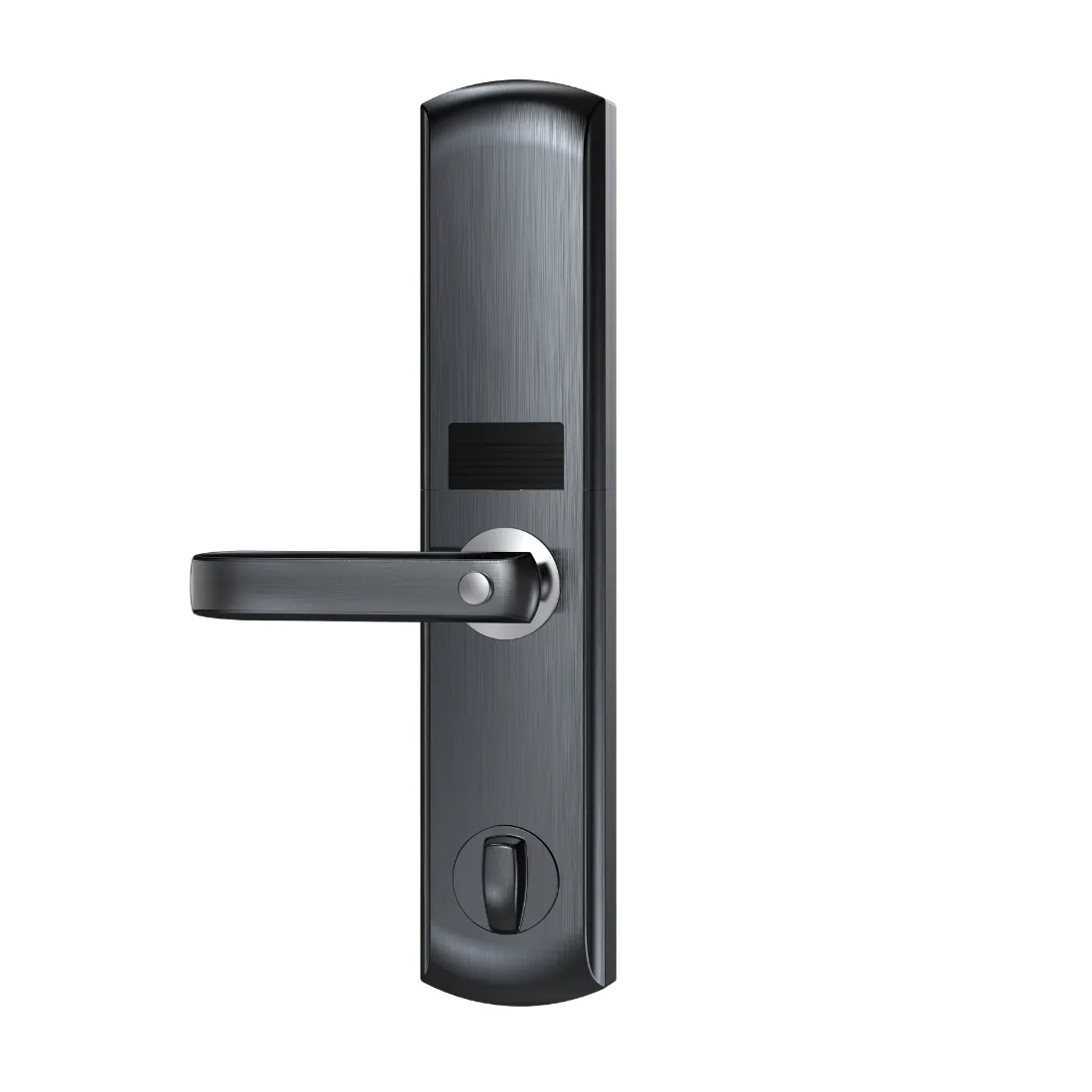

Tenon T109

TENON T109


Unlocking Ways	Fingerprint / Password / Mechanical Key / IC Card	Color	Antique Copper/Purple
operation System	M-Link 4.0	User capacity	100 Groups
Material	Zinc Alloy	Fingerprint Reader	Touch Key
Password Function	Virtual Password/ Password Protection	Screen Material	Tempering Glass
Screen Type	OLED	Fingerprint Identification Time	≤0.5s
suitable Lock Body	s6068x/s6068Ex/s6068W/s6068L	Up-down Hook	Support
Cylinder Lock	Grade C	Mechanical Keys	2
Working Power	8*1.5V AA alkaline battery	Working Environment	-20°C-75°C
suitable Door Thickness	45-100mm

ดาวน์โหลดคู่มือ Tenon T109 Manual


Unlocking Ways	Fingerprint / Password / Mechanical Key / IC Card	Color	Antique Copper/Purple
operation System	M-Link 4.0	User capacity	100 Groups
Material	Zinc Alloy	Fingerprint Reader	Touch Key
Password Function	Virtual Password/ Password Protection	Screen Material	Tempering Glass
Screen Type	OLED	Fingerprint Identification Time	≤0.5s
suitable Lock Body	s6068x/s6068Ex/s6068W/s6068L	Up-down Hook	Support
Cylinder Lock	Grade C	Mechanical Keys	2
Working Power	8*1.5V AA alkaline battery	Working Environment	-20°C-75°C
suitable Door Thickness	45-100mm
